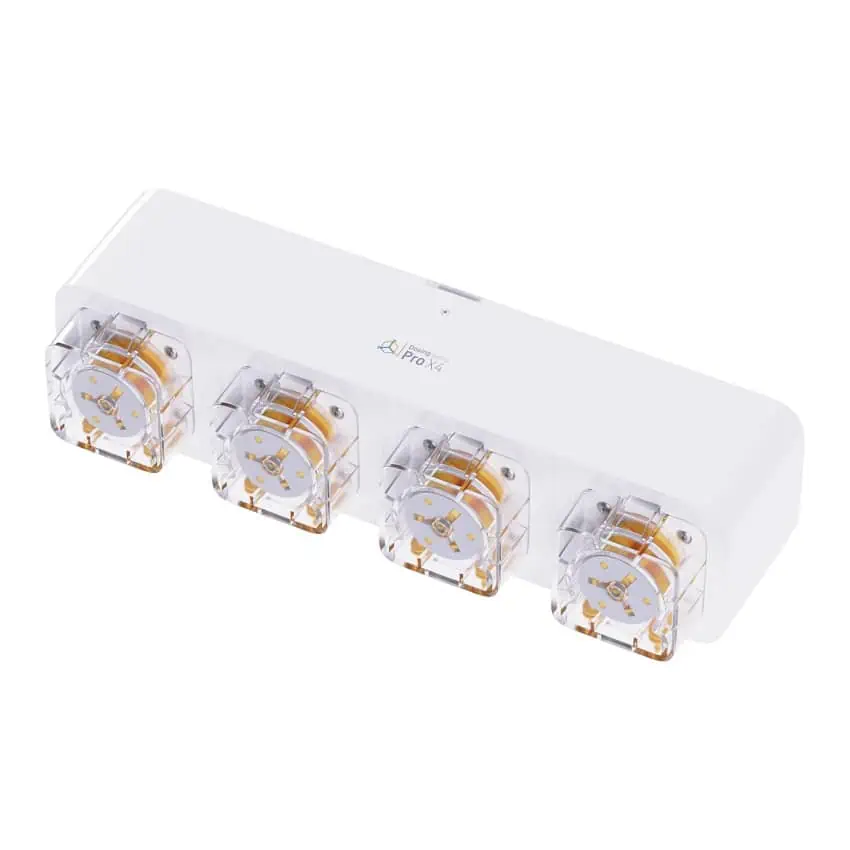

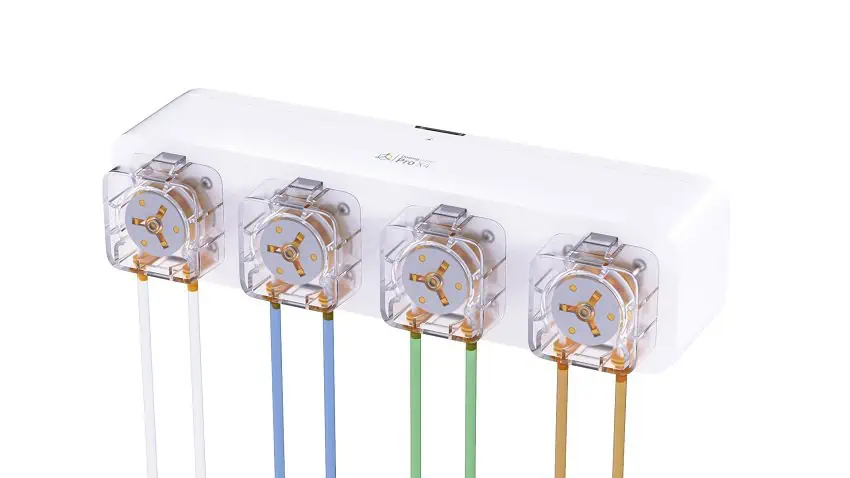

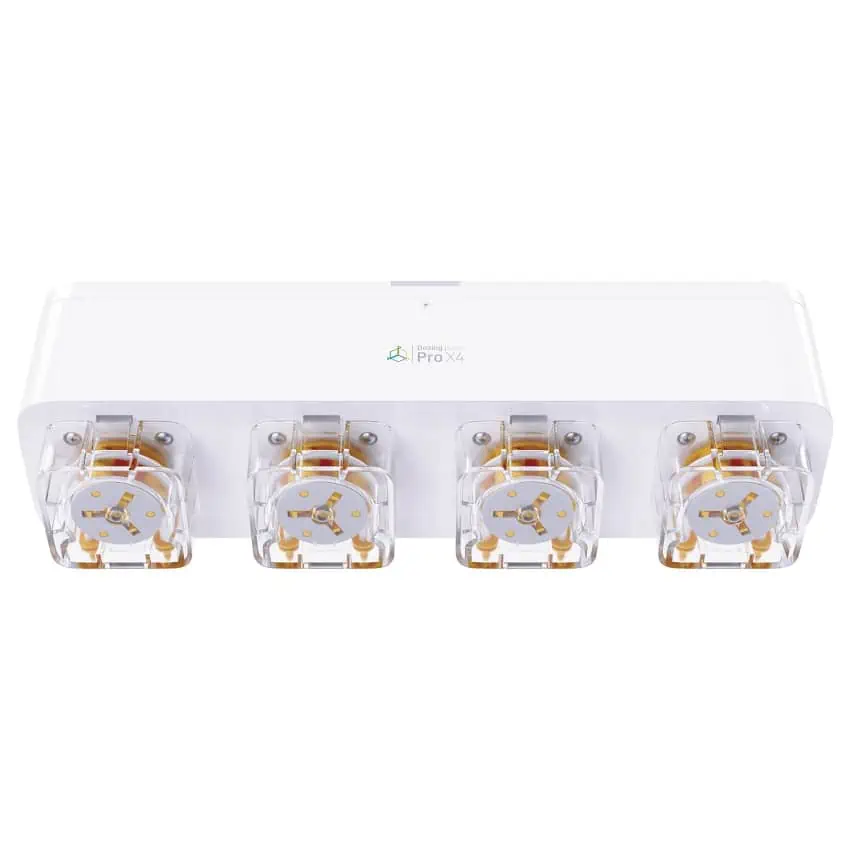

Reef Factory Dosing pump Pro X4

Reef Factory Dosing pump Pro X4 for precise dosing of minerals, trace elements and other supplements into the aquarium

The new Dosing Pump Pro series is a cutting-edge and highly efficient dosing pump designed specifically for marine aquariums. It enables precise dosing of essential minerals, trace elements, and other supplements directly into the aquarium. With its quiet, bi-directional stepper motor, this pump opens up a world of new possibilities. The proprietary, ultra-accurate Reef Factory pumps are a fantastic way to elevate your dosing routine in a marine aquarium.

The Dosing Pump Pro seamlessly combines top-notch quality with the best of Reef Factory’s offerings – free and functional software. Its clear and user-friendly panel, paired with efficient WiFi communication, ensures a hassle-free experience. Our Smart Reef application allows for remote supplementation and comprehensive real-time monitoring from anywhere in the world.

When it comes to dosing liquids in a marine aquarium, there are no compromises, and this is exactly what our new Dosing Pump Pro delivers.

Key features:

• Exceptional precision – dosing starting from 0.01 ml
• Pump efficiency of up to 9 ml of liquid per minute
• Silent operation of proprietary dosing pumps
• Highly accurate stepper motor
• Bi-directional operation with the ability to reverse the liquid flow (enabling dosing of phytoplankton and food)
• High chemical resistance BPT material used for the tubing
• Compact size and modern design
• Easy installation in the sump using a DIN rail
• Up to 48 doses per day

All you need to control this smart device is the free Smart Reef app. You can install it on your mobile device (Android, iOS) or use it from a browser. Simply pair the device with your Smart Reef account to enjoy a variety of smart features.

Smart functionalities:

• Free and user-friendly Smart Reef application for Android, iOS, or computer (browser-based support)
• Creation and modification of flexible dosing schedules
• Automation of the dosing process based on real-time parameter levels
• Ability to specify the direction of pump rotation
• Quick modification of dosing settings with the option to add extra doses outside the schedule
• Dosing in ml or percentage (%)
• Clear history of dosing activities
• Remote aquarium management from anywhere in the world, 24/7
• Grouping of pumps for easy management of multiple components dosing simultaneously (e.g., Balling method)
• Information about the remaining amount of liquid in the dosing container
• Intuitive and fast calibration process ensuring high dosing precision, with push notifications reminding you of the need for recalibration
• Import and export of dosing schedules

Automation:

The Dosing Pump Pro is a vital part of the Smart Reef 360 method – a modern approach to managing a marine aquarium. With the Smart Reef application, you can set up a series of automatic actions that simplify daily care for the optimal condition of your tank. The Smart Reef application will analyze measurements from the KH Keeper Plus or Smart Tester, and if it detects a low level of a tested parameter in the aquarium, it will send a precise dosing command to the pump. This process happens completely automatically!

Peristaltic pumps:

The Dosing Pump Pro X4 operates using new proprietary peristaltic pumps developed by the Reef Factory team. Their design is tailored to meet the various requirements expected from devices dedicated to marine aquariums. They are known for high dosing precision and an extended period of trouble-free operation, thanks to high-quality components. Additionally, they operate very quietly.

Modern device installation:

To cater to the needs of aquarium enthusiasts, we have enhanced the installation method within the cabinet. The latest Reef Factory devices feature an innovative mounting system based on the DIN rail. This solution is incredibly convenient and flexible, making it easier to keep everything organized within the cabinet.

Package contents:

• Device
• Manual
• 4x RF PRO M head
• 4x 2m silicone tubing ⅖ mm
• 12V 1.0 A power supply (EU/UK/AU/US)
• 3x DIN mounting rail
• Neodymium magnet for device reset

Technical specifications:

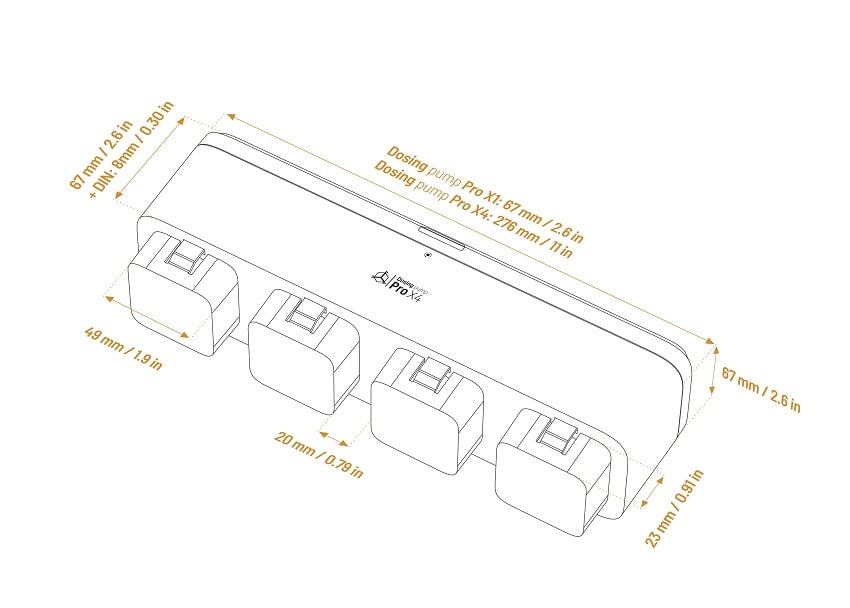

Device dimensions and weight:

Width: 27.6 cm / 11 in
Body depth: 6.7 cm / 2.6 in
Depth with head and handle: 9.3 cm / 3.7 in
Height: 6.7 cm / 2.6 in
Head: 4.9 x 4.9 x 2.3 cm / 1.9 x 1.9 x 0.91 in

Technical parameters:
Dosing accuracy: +/- 0.01 ml
WiFi communication: 2.4 GHz bgn
Bluetooth communication: BLE 5.0
Max. water tubing length: 2 m
Operating temperature: 20-30 °C
Ambient humidity: 0 to 95% RH
Operating noise: 40 dB

Power supply specification:
Input voltage: 12V 1A – AC 110-230V 50-60Hz
Power consumption: 0.5-5 W
The devices are CE certified.

Smart Reef+:
Reef Factory offers a variety of Smart products designed for easy and convenient management of marine aquariums. Build your own system based on intelligent devices and control everything from a single application!
