Reef Factory Smart Tester

Reef Factory Smart Tester

The Reef Factory Smart Tester is a multiparameter testing device that measures one parameter at a time. It can assess various parameters such as nitrate, phosphate, calcium, magnesium, and more, but you will need to change the reagents manually to switch between measurements. For instance, if you set it up with reagents for nitrate, it will only measure nitrate continuously, even every hour. To measure phosphate, you must change the reagents by yourself, and then you can proceed to measure phosphate instead of nitrate.

This advanced device is designed for testing essential water parameters in marine aquariums. The fully automated and precise tester provides instant and accurate results for the selected parameter, which you can easily access through the Smart Reef app. With features that allow you to schedule measurements and replace reagent cartridges with ease, the Smart Tester simplifies monitoring tank parameters significantly. The device also minimizes the need for calibration and features automatic cleaning, offering you unparalleled convenience.

With the Reef Factory Smart Tester, you will not only be able to automate the testing of parameters like PO4, NO3, Mg, and Ca, but you can also integrate the Smart Tester with dosing pumps to automate the maintenance of these parameters at desired levels.

Key features:

• Managed remotely with the Smart Reef app
• Up to 160 tests on one set of reagents*
• Fully automated analysis
• Quiet and precise operation of the original, in-house manufactured dosing pumps
• Quick replacement of the tested parameter using easy-to-install reagent cartridges
• Utilizes only 50 ml of water per single measurement
• Built-in auto-calibration of the device
• Compact size (210x140x95 mm) and modern design
• Easy installation in the sump using DIN rail

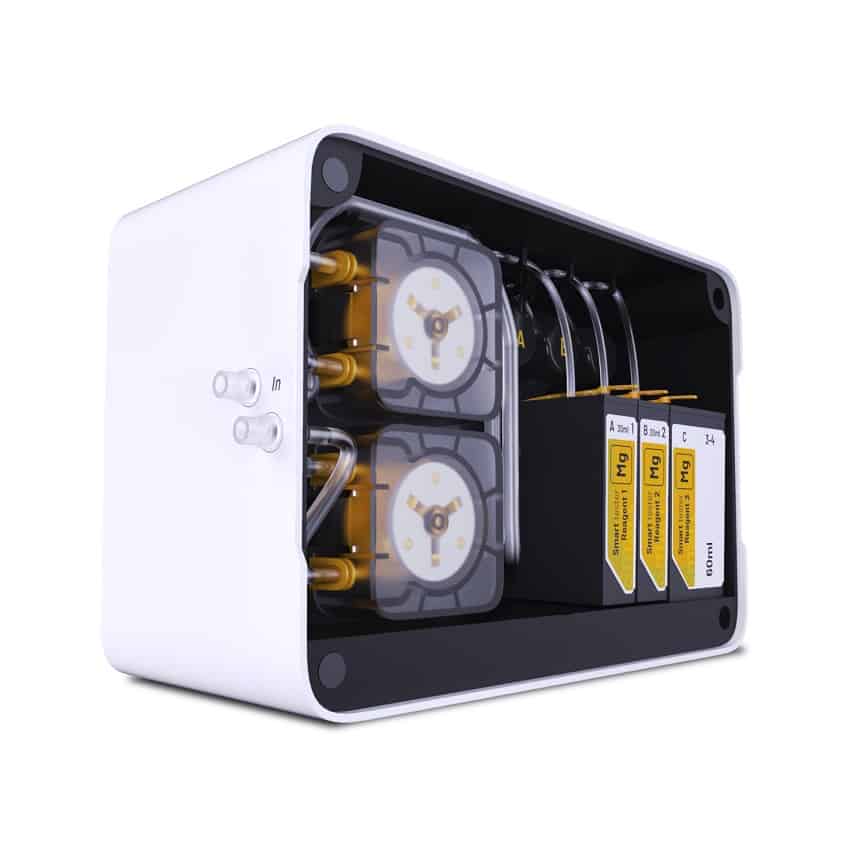

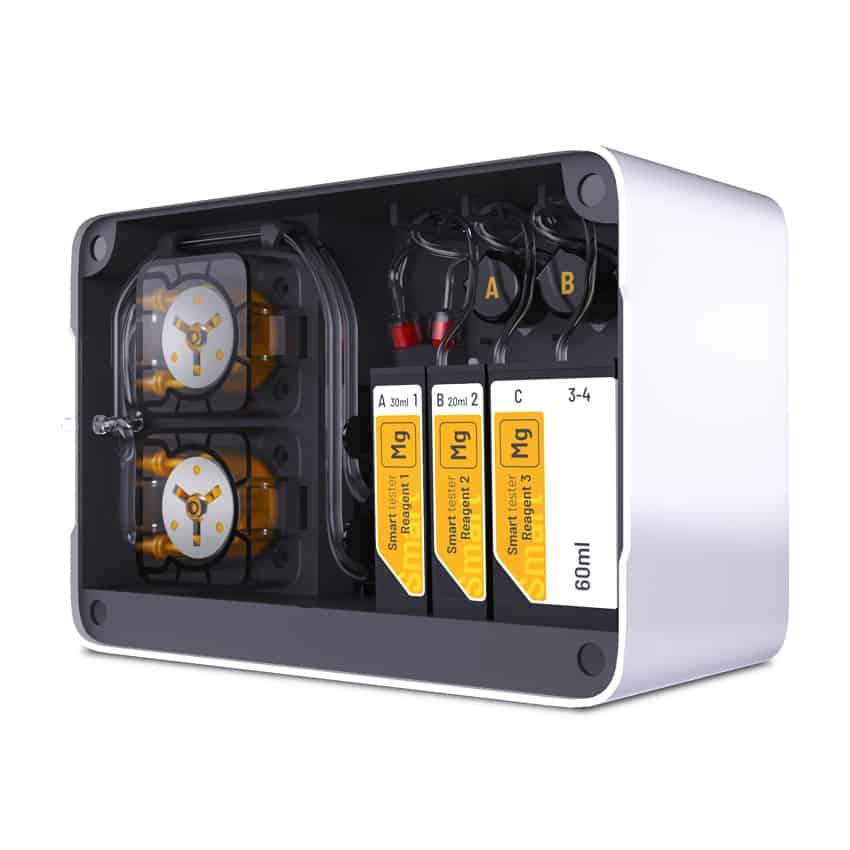

Peristaltic Pumps

The Reef Factory Smart Tester operates using an innovative, in-house manufactured peristaltic pump, developed by the Reef Factory team. These pumps are designed to fulfill the specific requirements of marine aquaristics, offering high dosing precision, extended periods of failure-free operation, and low noise levels.

Full Automation

The Smart Tester conducts measurements autonomously, from taking a water sample to emptying the measuring cuvette, making it ready for the next test. A one-time calibration after installation is all that is required, thanks to the auto-calibration system for metering pumps. This ensures long periods of trouble-free operation and high precision dosing.

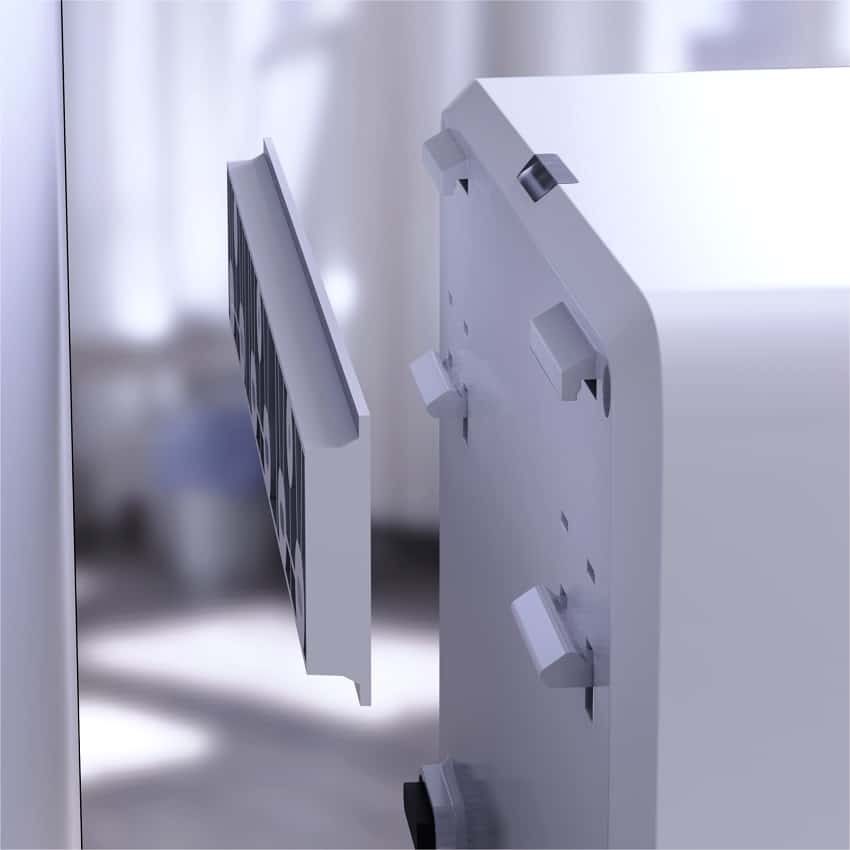

Modern Device Installation

To cater to aquarists’ needs, we have enhanced the method of installing equipment in the tank. The latest Reef Factory equipment features an innovative mounting system based on DIN rail, providing a convenient and customizable solution that helps keep your cabinet organized.

*The number of tests per set may vary depending on the selected parameter.

Dedicated Smart Tester Reagent Packs

To measure a specific parameter, you will need to purchase a set of dedicated reagent cartridges for the Smart Tester:

Mg – Measurement of Magnesium

• Number of tests from one set: ~50 (the number depends on the concentration of Mg ions)
• Measurement range: 800-1800 ppm
• Measurement resolution: 10 ppm
• Test duration: ~40-60 min

PO4 – Measurement of Phosphates

• Number of tests from one set: 160
• Measurement range: 0.00-3.00 ppm
• Measurement resolution: 0.01 ppm
• Test duration: ~40 min

The range of Reef Factory Smart Tester reagent pack cartridges will be expanded over time with additional test kits for relevant aquarium parameters.

To fully utilize the features of the Smart device from Reef Factory, you need the free Smart Reef app, which can be installed on your phone (Android, iOS) or accessed through your browser.

Smart Functionalities in the Smart Reef App:

• Information about current reagent levels
• Clear measurement history that allows you to compare changes occurring in the tank
• Ability to automate processes using measurement schedules and dedicated actions
• Precise meter of consumed water
• Option to perform tests outside the scheduled times
• Notifications about upcoming measurement set replacements and detected anomalies
• User-friendly wizard to facilitate the maintenance process of the measuring vessel
• Water refilling with automatic actions

Technical Specification

Dimensions and weight of the Reef Factory Smart Tester:

• Width: 21 cm / 8.3 in
• Height: 14 cm / 5.5 in
• Depth: 9.5 cm / 3.7 in

Power supply: 12V 1A

Power consumption: 0.5-5W

WiFi communication: 2.4 GHz

Bluetooth communication: BLE 5.0

Water connection: 2x luer lock

Max water hose length: 2m

Operating temperature: 20-30 °C

Ambient humidity: 0 to 95% RH

Kit Contents:

• Reef Factory Smart Tester measuring device
• Measuring cuvette with magnetic pill
• A set of droppers with an assembly tool
• Power adapter AC 110-230V
• DIN type mounting rail
• Water hoses 2x2m with adapters
• Water filter with mounting system
• RO 50ml tank for rinsing the drip system
• NO reagent is supplied and needs to be ordered separately!

* Additional assembly accessories and spare parts are also available.

Reef Factory offers Smart Tester reagent packs for dedicated parameters and spare parts for self-replacement.

Smart Reef +

Reef Factory provides a variety of Smart products designed to simplify and enhance marine aquarium management. Build your own system based on smart devices and control everything from a single app!
