Reef Factory Smart Wave 10 EU

Reef Factory Smart Wave 10 advanced recirculation pump

Smart Wave is an advanced recirculation pump designed to provide efficient water flow in even the most demanding aquariums. With its intelligent controller, you can make a variety of remote adjustments, including setting four circulation modes: Constant, Sine, Square, and Random. This flexibility ensures optimal water flow, even in tanks with complex arrangements and demanding stocking levels. The submerged components of the pump are specially protected against water, ensuring exceptionally long and trouble-free operation. Its ergonomic design minimizes the risk of rust and guarantees a quiet and energy-efficient operation.

The Reef Factory product comes in three versions, each with different performance levels:

• Smart Wave 10 – water flow 4000 l/h, power 10W
• Smart Wave 20 – water flow rate 10000 l/h, power 20W
• Smart Wave 30 – water flow 13000 l/h, power 30W

Key features:

• Modern design and high flow rate
• Controlled by the Smart Reef app with four pump operation modes: constant, sine, square, and random

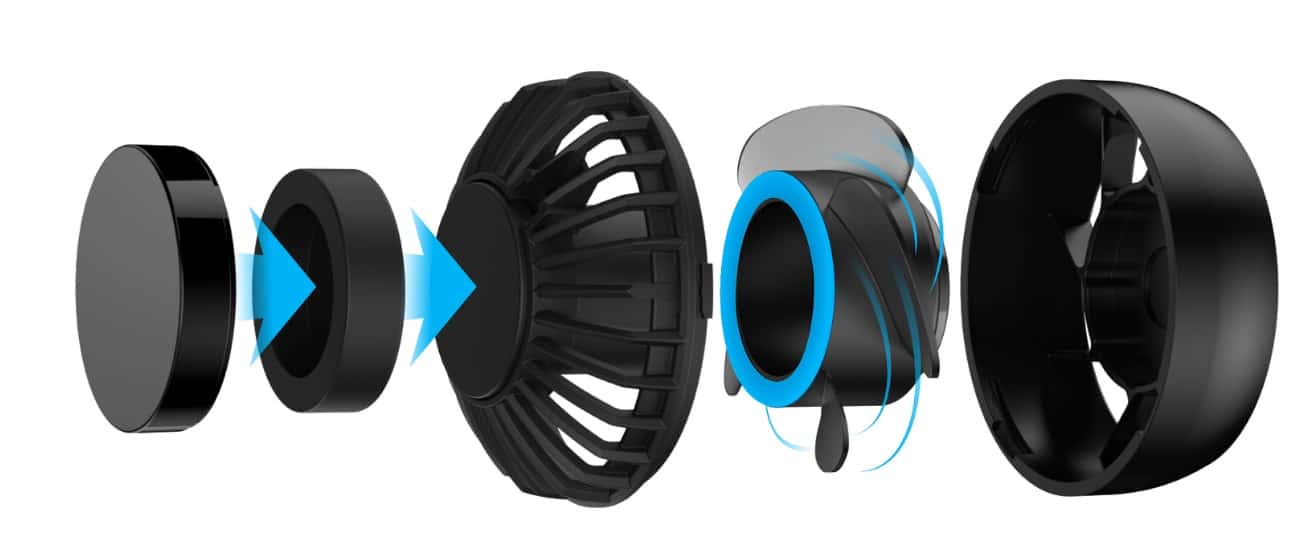

• Double sealing of parts in contact with water to reduce the risk of corrosion
• Wide range of pump settings for your aquarium
• Quiet and energy-efficient pump operation
• Additional display on the controller showing pump performance in percentages
• High energy efficiency – excellent flow to power consumption ratio (4000 l/h – 10W, 10,000 l/h – 20W, 13,000 l/h – 30W)

Various circulation modes: Smart Wave offers up to four water flow modes that can be set according to the individual needs of your tank:

• Constant mode – constant water flow at the specified power
• Sine mode – variable water flow with smooth changes in power within a specified range
• Square mode – variable water flow with abrupt changes in power within a specified range
• Random mode – variable water flow with random changes in power within a specified range

Wide range of pump adjustment in all directions: The water flow can be directed exactly where it is needed in the tank, thanks to the magnetic base that allows you to adjust the pump head at various angles. To control your Smart device, simply use the free Smart Reef app. You can install it on your mobile device (Android, iOS) or operate it from a browser. Just pair the device with your Smart Reef account to enjoy a wide range of smart features.

Smart features:

• Free and user-friendly Smart Reef app for Android, iOS, or computer (browser-based operation).
• Completely new interface for quick and easy configuration.
• Clear schedule allowing for the setting of the pumps’ daily operation, power change points, and circulation modes.
• Smooth power adjustment capability.
• Feeding mode – the ability to remotely stop the pump during feeding time and program when it should resume operation.
• Remote on/off functionality.
• Push notifications on your mobile device.

Additional features:

• Set of strong magnets for mounting the pump in the aquarium, both straight and at an angle.
• DIN rail for quick mounting of the controller in a chosen location.
• Intelligent notifications that allow for a quick response in case of unforeseen events in the tank.

Technical specifications:

Smart Wave 10

• Water flow: 4000 L/h
• Dimensions: 6 x 4.5 x 6 cm / 2.4 x 1.8 x 2.4 in
• Controller/display size: 7 x 2.5 x 7 cm / 2.8 x 1 x 2.8 in
• Voltage: 24V DC 0.75A
• Power supply specification: Mains voltage: 110-230V AC, CE, UL, 24V DC
• Water resistance: IPX8

Package Contents:

• Smart Wave device with suction cup on the cord
• WIFI display/controller
• AC/DC power supply
• Set of magnets for straight and angled mounting
• Instruction manual

Smart Reef + Reef Factory offers a variety of Smart products designed for easy and convenient management of marine aquariums. Build your own system based on intelligent devices and control them from a single application!
